  • Automatic L-Sealers VSA1721 (Value Series)

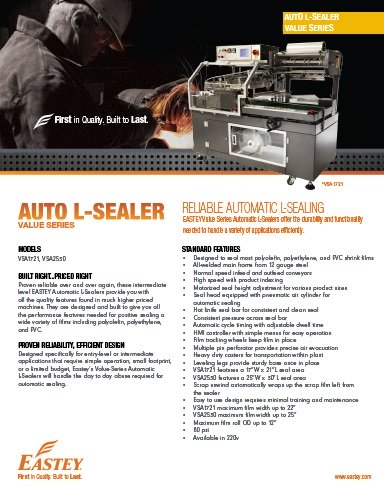

    Automatic L-Sealers Value Series Brochure

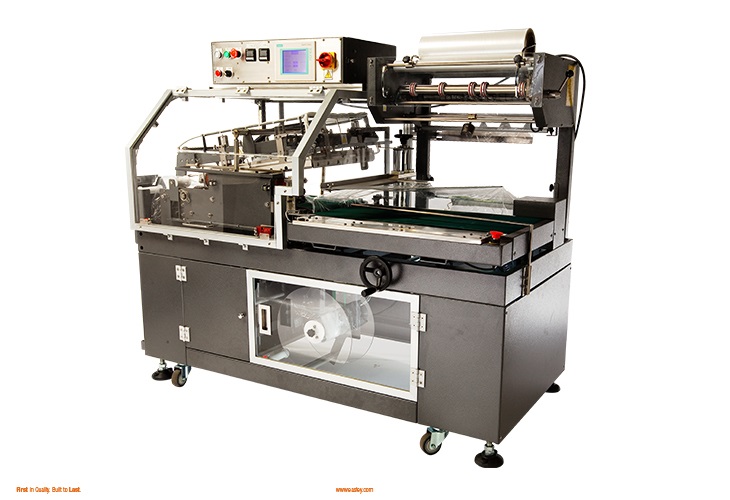

    Automatic L-Sealers Value Series VSA1721

    Proven reliable over and over again, these intermediate level EASTEY Automatic L-Sealers provide you with all the quality features found in much higher priced machines. They are designed and built to give you all the performance features needed for positive sealing a wide variety of films including polyolefin, polyethylene, and PVC.

    Proven Reliability, Efficient Design

    Designed specifically for entry-level or intermediate applications that require simple operation, small footprint, or a limited budget, Eastey’s Value-Series Automatic L-Sealers will handle the day to day abuse required for automatic sealing.

    User interface features simple menus for easy operation and adjustments required for a variety of applications.

    Adjustable pin perforator provides air evacuation in the film for clean and tight film shrinkage.

    Roller exit table provides a smooth transition from the seal area to the shrink tunnel.

    Scrap unwind automatically wraps up the scrap film left from the sealer.

    FEATURES OF THE AUTOMATIC L-SEALER VALUE SERIES VSA1721

    • Designed to seal most polyolefin, polyethylene, and PVC shrink films
    • All-welded main frame from 12 gauge steel
    • Normal speed infeed and outfeed conveyors
    • High speed with product indexing
    • Motorized seal height adjustment for various product sizes
    • Seal head equipped with pneumatic air cylinder for automatic sealing
    • Hot knife seal bar for consistent and clean seal
    • Consistent pressure across seal bar
    • Automatic cycle timing with adjustable dwell time
    • HMI controller with simple menus for easy operation
    • Film tracking wheels keep film in place
    • Multiple pin perforator provides precise air evacuation
    • Heavy duty casters for transportation within plant
    • Leveling legs provide sturdy base once in place
    • 17”W x 21”L seal area
    • Scrap unwind automatically wraps up the scrap film left from the sealer
    • Easy to use design requires minimal training and maintenance
    • maximum film width up to 22”
    • Maximum film roll OD up to 12”
    • 80 psi
    • Available in 220v

    MODEL SPECIFICATIONS <

    eastey-l-sealer-automatic-value-series-specs
