Description

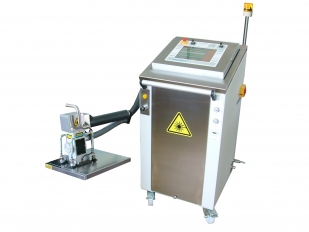

- Compact Mobile laser system for marking large objects
- Mobile and easy to handling marking head equipped with vacuum system for easy gripping to surface of marking product
- Minimal running cost, no consumables
- All-in-One design with integrated smoke extractor
TECHNICAL SPECIFICATIONS
| Laser type: | Fiber (pulsed) , power 20W |
| Wavelength: | 1064 nm |
| Electrical requirements: | 115V / 230V , 50/60Hz, 1PH – Auto |
| Marking field: | 70x70mm |
| Input/Output Signals: | Safety interlock, Power, Shutter, READY / MARKING / FAULT |
| Cooling: | Integrated air cooling with dust protection |
| Ambient temperature: | 10-40°C; Suggested 15-30°C |
| Humidity: | up to 90%, non condesing |
| Enclosure: | IP 52 / NEMA 12 |
| Weight: | Control Unit 60kg; Marking Unit 3kg |
| Communication: | RS 232 / USB / Ethernet 10 Base T |
| Fonts: | Multilanguage, Unicode |
| Sterowanie | Multilanguage 10-inch touch screen with user friendly interface for Preview, Edit& New jobs creation and System setup |
OPTIONAL EQUIPMENT
- None
